What is 3D printed and lost wax cast Jewelry?
What is lost wax casting?
Lost wax casting is a method of creating metal objects by first sculpting or 3D printing a model in wax. This wax model is then encased in a refractory plaster material, known as the investment. The investment is allowed to harden and then heated until the wax model melts or "loses" itself, leaving a hollow cavity in the shape of the desired object. Molten metal is then poured into this cavity, where it cools and hardens to create an exact replica of the original wax model in metal. This method is called lost wax casting or investment casting due to the use of the investment material to create the mold for the molten metal. It is prized for its ability to produce intricate and highly detailed metal objects.
What is the history of lost wax casting?
Lost wax casting has a long story dating back thousands of years. Evidence of this technique can be found as far back as 5,000 years ago, with the discovery of ancient beeswax molds used in the casting process. Over the centuries, lost wax casting has been refined and improved upon, becoming one of the most enduring and widely used methods of metal forming in the world. It is prized for its versatility, precision, and ability to produce intricate and highly detailed objects. Despite the advances in technology and manufacturing over the years, lost wax casting remains a vital and integral part of the metalworking industry.
How does lost wax casting relate to 3D printing?
Traditionally, the wax object would be hand-carved, but with the advent of 3D printing, it is now possible to create the wax object using a 3D printer.
Amelia Method

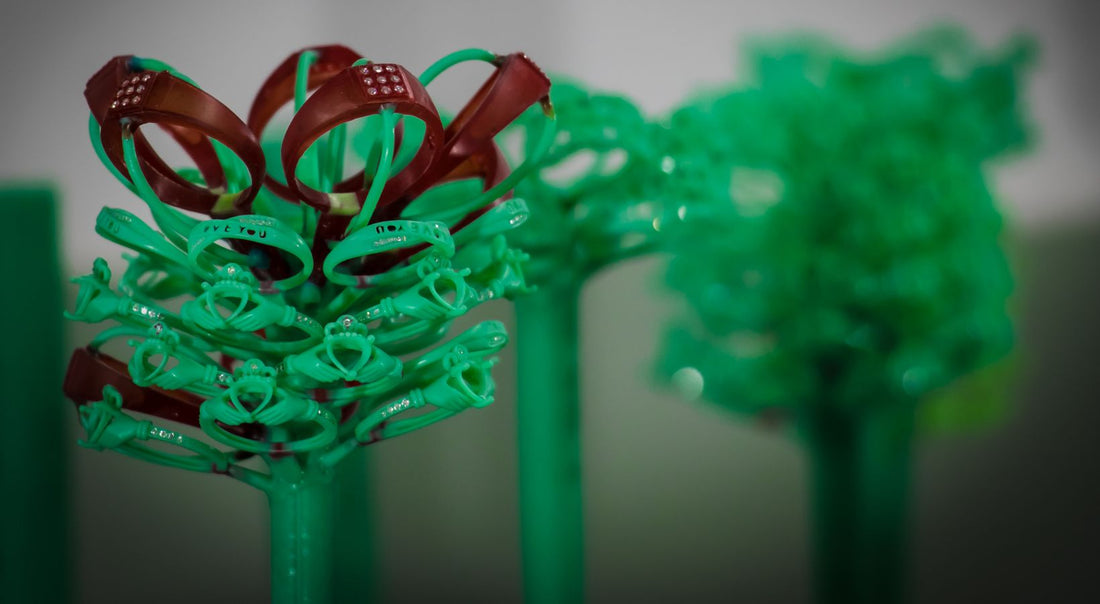

Amelia Ray Jewelry is able to utilize the ancient technique of lost wax casting in conjunction with modern 3D printing technology to create one-of-a-kind pieces of jewelry. The process begins by designing and sculpting the piece in a computer program, creating a digital model of the final product. This model is then used to 3D print a wax version of the piece, using a specialized printer. Once the wax version is complete, it is subjected to the lost wax casting process. This involves encasing the wax in refractory plaster to create a mold, which is then heated to melt away the wax, leaving a hollow cavity in the shape of the desired piece. Molten metal is then poured into this cavity, where it cools and hardens to create a metal version of the original wax model. This process allows Amelia Ray Jewelry to create intricate and detailed pieces that would be difficult or impossible to achieve through traditional methods alone.
-
Create a mold of the wax object using refractory plaster, also known as investment. This is typically done by encasing the wax object in a container filled with the investment material and allowing it to harden.
-
Melt the metal of choice (such as gold, silver, or bronze) and pour it into the mold. The molten metal will take on the shape of the mold, creating an exact replica of the wax object.
-
Once the metal has cooled and hardened, remove it from the mold and clean it up. This may involve polishing, sanding, and other techniques to remove any imperfections and achieve the desired finish.
By using a 3D printer to create the wax object, lost wax casting can be more efficient and precise, allowing for the creation
